Signgraver® Engraving Machines are the most durable machines on the market and their design doesn't require two-handed operation, or belt changes, since the motor is mounted right on the pantograph.  Frankly, the machines usually don't require service at all for many years, it's usually lost or misplaced parts that's the problem!

Often we have customers requesting either an instruction manual for an older machine or in some instances a replacement part, for a Scott® Engraving Machine.  To make it easy for you to find the part you are looking for, we have added diagrams of the engraving machines and their corresponding parts lists below.

Key Benefits

Quick Response to Signage Needs
Simple Operation - Professional Results
Wide Range of Typestyles and Symbols
Made in U.S.A.

Capabilities

If you have any kind of a problem with your machine, please contact us, because since we manufacture the machines right in our plant, we have the technical knowledge and over 40 years experience to solve any problem that you may have.   Not to mention - a courteous and knowledgeable customer service department.

You can return a machine to us anytime for a quote on refurbishing, repair, or installing replacement parts.
We can test and repair our own motors right in our plant, or we can sell you a new one that you can easily install yourself.
Our customer service representatives are loaded with helpful information, advice, and some pretty good tips on how to do things more efficiently with the engravers.

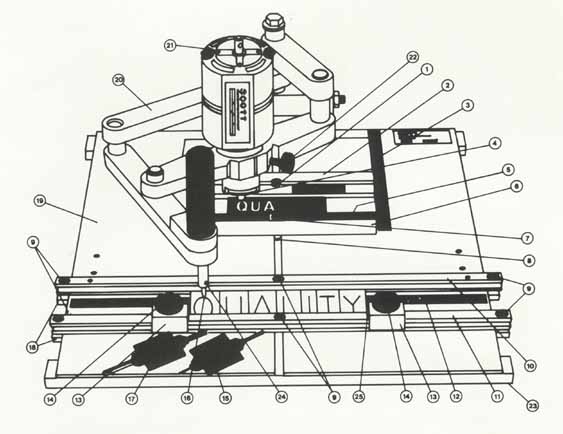

SM100B/SM400 Diagram and Spare Parts List


No.

 Part # Description:
1 K012 Sign Blank clamping screw.
2 K100B01 Sign Blank clamping bar with decals.
3 K100B08 Engraving position scale.
4 K001 Motor mtd. depth control for cutters up to and including 1/8".
  K002 Motor mounted depth control for cutters over 1/8".
5 K009 Sign Blank centering scale (scale only).
6 K100B02 Sign Blank plate with centering scale.
7 K021 Engraving position clamping screw.
8 K010 Tongue nut.
9 K023 Type bar clamping screw.  All 1" (6 required).
10 K100B03 Upper type holding bar with roll pins installed.
  K100B07 Upper type holding bar with nut bar and screws.
11 K022 Lower type holding bar.
  K018 Lower type holding bar assembly with nut bar and screws.
12 K100B09 Master type centering scale.
13 K019 Horizontal letter lock with nylon screw.
14 K020 Letterlock clamping screw (screw only).
15 K003 Small hex wrench.
16 K013 Stylus Tip, 34° angle.
  K014 Stylus Tip, 20° angle.
  K040 Collet nut.
  K041 Stylus Tip, 90 ° angle.  Custom templates; Arabic Font.
17 K004 Large hex wrench.
18 K024 Nut bar (2 required).



No. Part # Description:
19 K100B04 Engraver base.
20 K100B05 Complete pantograph assembly (less motor).
21 K005 Motor 117v. AC
  K007 Power Converter 230v. to 117v. (required for 230 v. operation.)
22 K042 Mfr. thumb screw assembly (nylon plug).
23 K100B10 Rubber foot (4 per machine).
  KTS1 Panto Stylus Assembly-Old shaft w/set screw, bushing, spring.
  KTSB1 Panto Stylus Assembly-For machine w/plastic handgrip, shaft
    with set screw.
  K044 Pantograph grip - Cover only.
  K045 Pantograph grip assembly cylinder, block, and screw.
24 K046 Set screw only for stylus shaft.
25 K043 Letterlock wear strip, black.

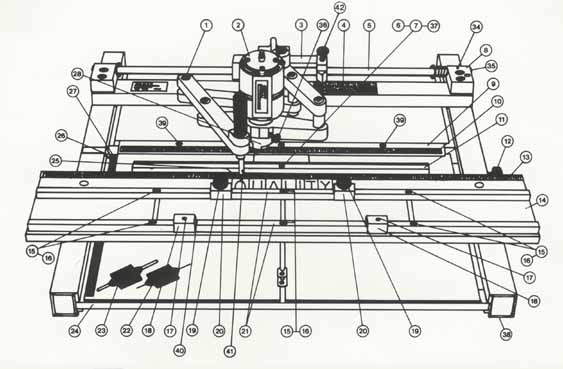

SM300/SM500 Diagram and Spare Parts List


No. Part # Description:
1 K025 Complete pantograph assembly (less motor & mount. bracket)
2 K005 Motor 117v. (Order K007 Power Converter for 230v. operation.)
3 K026 Pantograph mounting bracket (casting only).
4 K027 Pantograph centering decal.
5 K300002 Pivot shaft (SM300).
6 K012 Sign blank clamping screw.
7 K033 Sign blank clamping bar nut (not shown).
8 K028 Pivot block.
9 K300003 Sign blank clamping bar (top) SM300 with scale.
10 K300004 Sign blank centering scale (scale only) SM300.
11 K300005 Sign blank clamping bar (bottom) SM300.
12 K029 Engraving position clamping knob.
13 K008 Master type centering scale.
14 K300006 Master type plate SM300.
15 K034 Type bar clamping screw (6 required).
16 K010 Tonque nut (not shown, 6 required).
17 K030 Letterlock clamping screw socket (screw only).
18 K031 Horizontal letter lock with socket screw.
19 K020 Letterlock clamping screw, nylon (screw only).
20 K019 Horizontal letterlock, with nylon screw.
21 K032 Type holding bar assembly with screws & tonque nuts. (2 req.)
22 K003 Small hex wrench.
23 K004 Large hex wrench.
24 K300007 Sign blank plate SM300.



No. Part # Description:
25 K013 Stylus Tip, 34° flat end.
  K014 Stylus Tip, 20° flat end.
  K015 90° Included angle.
  K040 Collet nut.
  K041 Stylus Tip (Custom templates; Arabic fonts).
26 K035 Engraving position pointer.
27 K017 Engraving position scale.
28 K001 Motor mtd. depth control. Use w/cutters up to and incl.1/8".
  K002 Motor mounted depth control.  Use w/cutters over 1/8".
  K002A Depth control for curved surface.
29 K002B Stylus mounted depth control (not shown).
30 K037 #2 side clamping bars w/scales & mounting hardware (not
    shown, set of 2)
31 K038 #2 side clamping bar scale (not shown, 2 required).
32 K034 #2 side clamping bar screw (not shown, 2 required).
33 K010 #2 side clamping bar nut (not shown, 2 required).
34 K300008 Pivot shaft pin.
35 K300009 Pivot shaft end caps (2 per machine).
36 K042 Mfr. thumb screw assembly (nylon plug).
37 K300010 Sign blank clamp bar groove pin.
38 K300011 Rubber foot assembly (washer, nut, 4 per machine).
39 K300012 Sign blank clamp bar mounting screw (top, 3 per machine).
40 K043 Letterlock wear strip, black (3 per machine).



No. Part# Description:
41 K046 Set screw only for stylus shaft.
  KTS3 Panto. stylus asmbly.-Old shaft w/set screw, bushing, spring.
  KTSB3 Pantograph stylus assembly - (for machine with plastic hand
    grip), Shaft with set screw, and spring.
  K044 Pantograph grip - cover only.
  K045 Pantograph grip assembly cylinder, block, and screw.
42 K047 Pantograph position locking screw.
43 K026308 Upgrade collar/ spring kit (2 pivot shaft collars,1 hinge spring.)
